Six bread galvanized steel calcium sulfate base network movable floor

Six bread galvanized steel plate, good sealing performance, waterproof; High dimensional accuracy, super load-bearing and pressure-resistant; The height of the bracket can be adjusted, the assembly is flexible, the wiring amount is large, the interchangeability is good, and the surface can be laid with various films, which is beautiful and generous; Light weight, super bearing pressure; High reuse rate, easy disassembly and assembly, cost saving and long service life. Widely used in all kinds of computer room, communication room, control room, power room, senior office building.

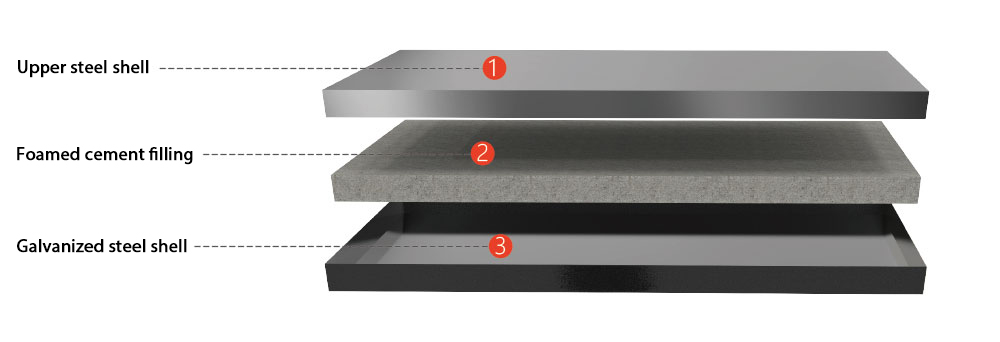

Product structure

Super load-bearing(1)
Beautiful and generous(2)
Sealed and waterproof(3)
The stand is adjustable(4)
Light weight(5)
Easy to disassemble and assemble(6)

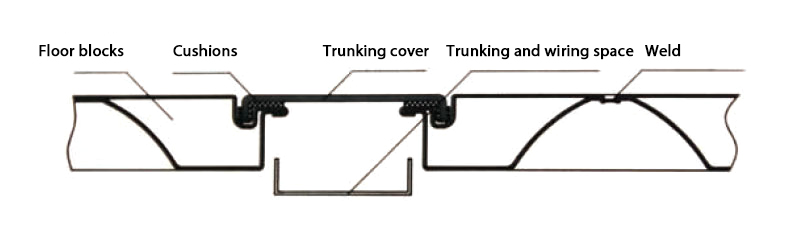

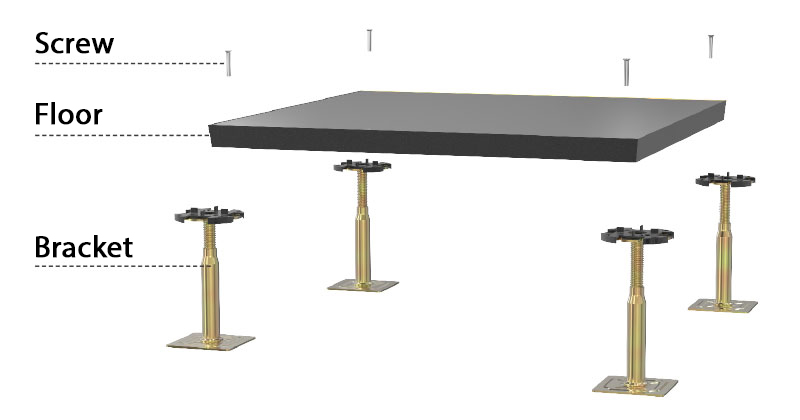

Installation structure

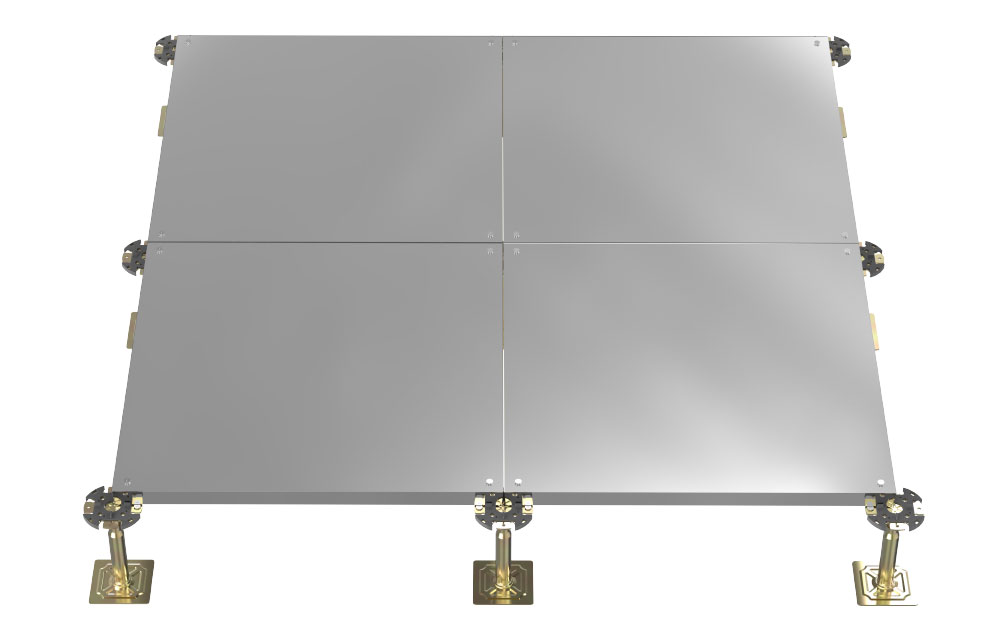

Product images

Technical parameters

Model

Specification (mm)

Concentrate the load

Shock load N

Ultimate load N

Uniform loading N

Rolling load

N Kg 10 Times 10000 Times

SP-SL-FS1000

600X600X31

≥4450

≥453

≥670

≥ 13350

≥ 23000

4450

3560

SP-SL-FS1250

600X600XB9

≥5560

≥567

≥780

≥ 16680

≥ 33000

5560

4450
