All-aluminum ventilation anti-static movable floor

The aluminium ventilated floor is finished on the basis of the blind and has all the characteristics of the blind. According to the different needs of the customer's air output rate, change the size of the aperture to achieve different ventilation rates. Floor ventilation rates can range from 15% to 30%. It is suitable for program-controlled computer rooms, computer rooms, power dispatching rooms, clean purification plants and other places requiring purification and anti-static in telecommunications, power electronics, microelectronics, medicine and other industries.

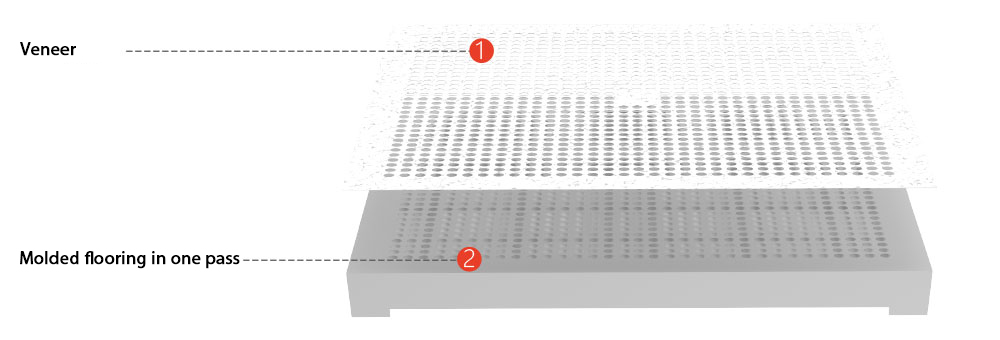

Product structure

Light weight(1)
Good toughness(2)
Strong load-bearing(3)
Shock resistant(4)
Flat surface(5)
The seams are fine(6)

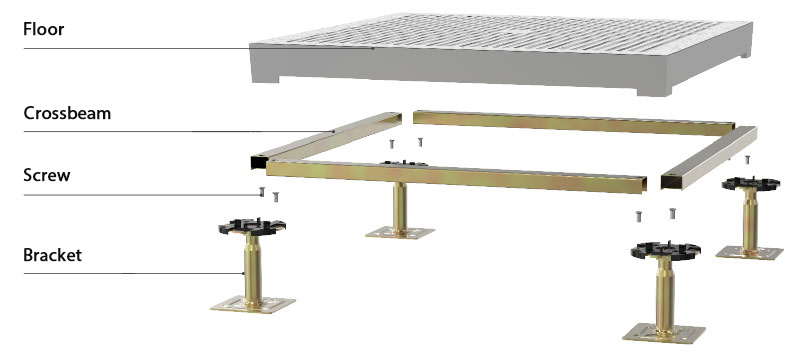

Installation structure

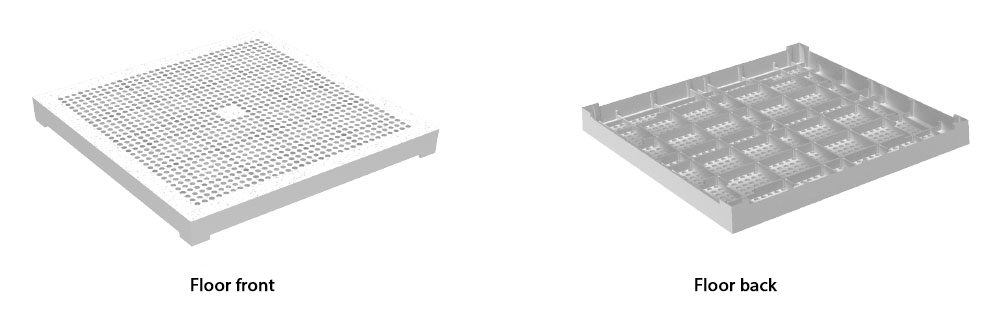

Product images

Technical parameters

Model

Specification(mm)

Concentrate the load

Shock load N

Ultimate load N

Uniform loading N

Rolling load

N

Kg

10  Times

10000  Times

SP-QLT-A

600×600×55

≥ 5560

≥560

≥780

≥ 16680

≥ 33000

5560

4450

SP-QLT-B

≥6675

≥670

≥1005

≥ 19892

≥ 34500

6675

5340

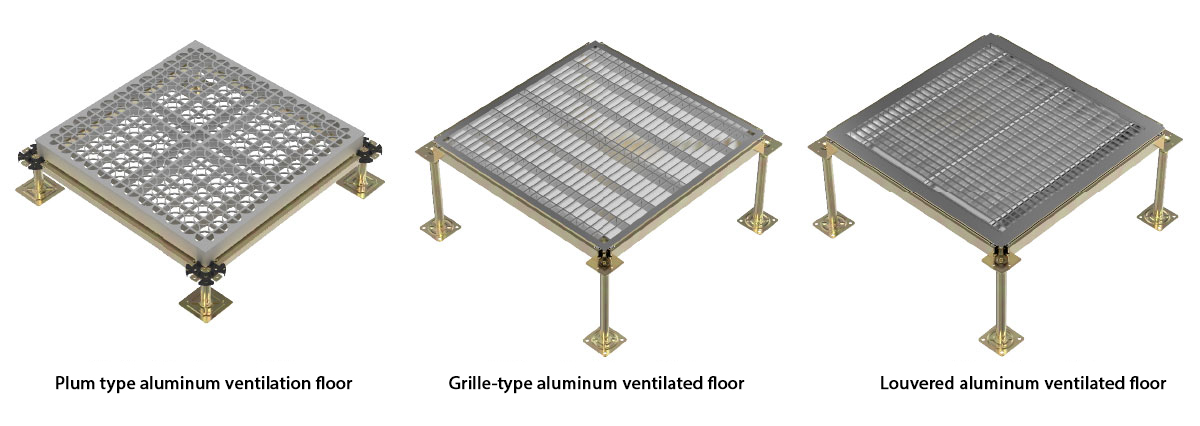

Model

Product name

Ventilation rate

Load-bearing capacity (KG)

Length(mm)

Width(mm)

thickness(mm)

Material

Fire performance

SP-TFL-M-55

Plum blossom type
Aluminum ventilated floor

55%

450

600

600

55

Aluminium

A

SP-TF-G-70

Grille-type aluminium ventilated floor

70%

360

600

600

35

Aluminium

A

SP-TFL-G-70

Louvered cultivated ventilated floor

70%

150

600

600

70

Aluminium

A

HPL veneers

PVC veneers
