Take you to know more about the cable tray fixing device in the computer room

Update:01-12-2022
Summary:

Take you to know more about the cable tray fixing devic […]

Take you to know more about the cable tray fixing device in the computer room server rack China

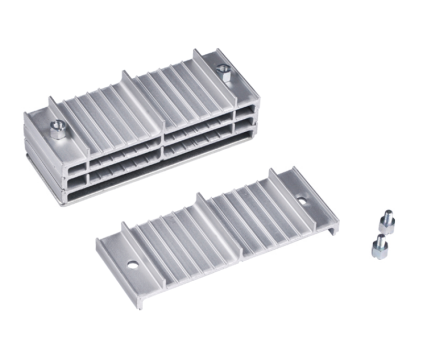

aluminum alloy wire fixer

aluminum alloy wire fixer

SThe cable fixing devices in the machine room can be classified into three types according to their materials. 1. new SUNPLN plastic wire fixer is made of fire-resistant and flame retardant ABS engineering plastic, which is aging resistant and easy to use. It is used for sorting and fixing cables in various machine rooms. 2. The new Shangpin aluminum alloy wire fixer is similar to the plastic wire fixer, but each piece needs to be screwed with two screws, which is more work than the plastic wire fixer. 3. Xinshangpin power cord fixing device is generally used to fix the power cord, so it is also called power cord fixing device. The power cord fixing device is composed of a pressing plate and a flame-retardant cushion block. The combination of spacer blocks can be used to fix the cable with a diameter of 6mm to 60mm.
1. new SUNPLN plastic thread fixer
There are two specifications of new SUNPLN plastic cable fixer, which are respectively applicable to the fixation of Category V and Category VI network cables with cable diameters less than 7mm and the fixation of 8-core 2M cables with cable diameters within (7-11) mm. The procedure is as follows:
1. The first piece of wire fixing device is fixed on the cable rack with a screw nut as the base. According to the actual number of cables, determine whether the first piece of wire is laid.
2. Press on the second piece of wire retainer.

3. Lay the cable on the second piece of wire fixing device.
4. Press on the third piece of thread fixing device, and so on.
5. If it is necessary to release, insert a slotted screwdriver into the slot on either side of the left and right side of the thread fixer and lift it up to release.
2. new SUNPLN aluminum alloy wire fixer
The new Shangpin aluminum alloy wire fixer also has two specifications. It is almost the same as the plastic cable fixer, but two screws need to be tightened for each piece. The work amount is larger than the plastic cable fixer wiring. Because it is cut from aluminum alloy profiles, the cross section will inevitably leave burrs, etc., so you must be careful when wiring to avoid scratching the cable. The procedure is as follows:
1. Fix the base of the aluminum alloy wire fixing device on the crosspiece of the cable rack with a special screw nut.
2. Put the first piece of aluminum alloy wire fixer on the base, and screw in the special screw,
3. Cloth the cable, press the second piece of aluminum alloy fastener, and screw in the special screw.
4. Cloth the second layer of cable, press the third piece of aluminum alloy fastener, and screw in the special screw.
5. And so on, repeat the action until all cables are laid.

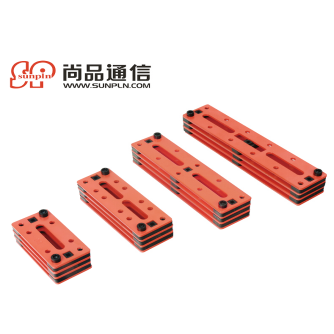

3.new SUNPLN Power Wire Fixer

Power Wire Fixer
