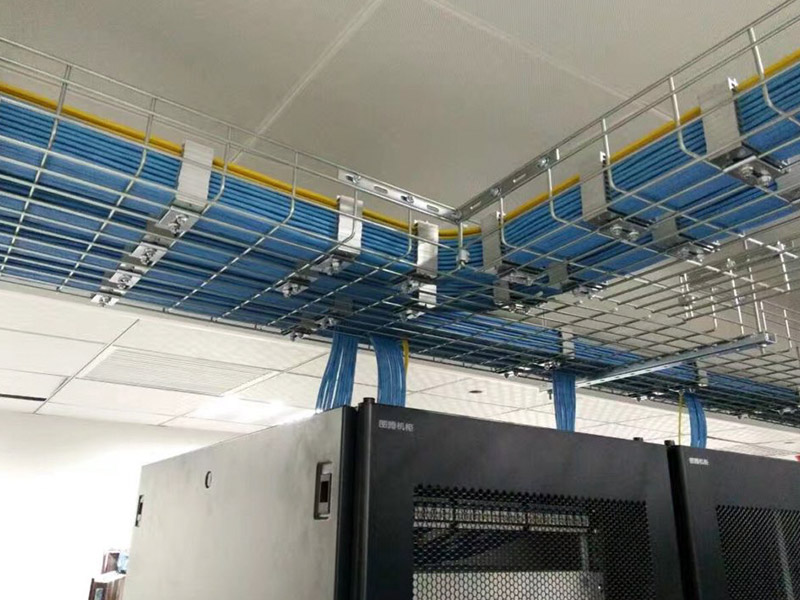

Everyone must be familiar with thenew SUNPLN wire mesh cable tray, but there must be many questions about the installation of the grid cable tray. So today we will carefully explain what we need to pay attention to when installing the grid cable tray:
1. During the installation, we should first fully understand the basic structure of the grid cable tray, understand each component of the grid cable tray, and then install it. Since there is no need to customize any elbow, tee and other components, the grid cable tray can be made into various forms according to the actual construction situation. This feature is very simple for designers and installers, which can greatly reduce the installation time.
2. During the installation process, attention should be paid to the connection between the cable trays. The cable tray should be installed stably without deformation. The new and fashionable cable tray is equipped with special quick connectors, which can directly connect the cable trays without any spare parts. During the installation process, the installation time and labor cost are greatly reduced. This is a good news for the cable tray installation!
Advantages of grid bridge:
1. Simple structure, convenient and fast installation;
2. Beautiful style
3. Convenient equipment repair and maintenance
4. Convenient upgrade
5. The cost of cable tray is low, and raw materials are saved by 2/3 compared with traditional ones
6. Good heat dissipation, effectively extending the service life of the cable
Precautions fornew SUNPLN wire mesh cable tray:
We should carefully check the appearance of the grid cable tray at the first step after receiving it, because the new SUNPLN wire mesh cable tray is easy to deform during transportation when it is transported to the construction site. So when you receive it, you must carefully check it, and ask the manufacturer to show the quality inspection report of the grid bridge. If it is hot-dip galvanized, the surface should be even, without burrs, and the welding points should be flat.
When installing the bridge, pay attention to the installation position. When laying the bridge horizontally, the height should generally not be less than 2.5m. For some needs of heat dissipation and later maintenance, when laying the bridge in multiple layers, remember to reserve space and comply with the relevant distance regulations.
During the installation of supports and hangers, the quality of supports and hangers in thenew SUNPLN wire mesh cable tray shall be laid horizontally in accordance with relevant technical standards. The span support shall be laid vertically for 1.5-3m. The fixed spacing shall not be greater than 2m. The horizontal difference between two adjacent bridge brackets shall not be 10mm, and the deviation of the vertical centerline shall not be greater than 20mm.
The general specification ofnew SUNPLN wire mesh cable tray is generally 2m or 3m each section, 50 * 30, 50 * 50, 100 * 50, 100 * 100, 200 * 50, 200 * 100, 300 * 100, 400 * 100, 500 * 100, etc. For bridges made of unconventional materials, the factory can generally accept customized production.
With its mechanical performance and variability, new SUNPLN wire mesh cable tray is increasingly favored by major engineering contractors. With the development of China's "new infrastructure" program, the future 5G, AI, industrial Internet and other industries will increasingly demand grid cable tray. new SUNPLN Technology specializes in the production of new SUNPLN wire mesh cable tray, and has a good understanding of the installation of grid cable tray. If necessary, please call to exchange the grid cable tray
