Installation of fiber movable exit kit

Where the fiber optic cable tray needs to lead the optical fiber to the cabinet, generally need install movable exit kit, during installation, the location of the fiber introduction into the cabinet must be considered to determine the location of the movable exit kit; the advantage of the movable exit kit is that it can be adjusted at any time as needed location.

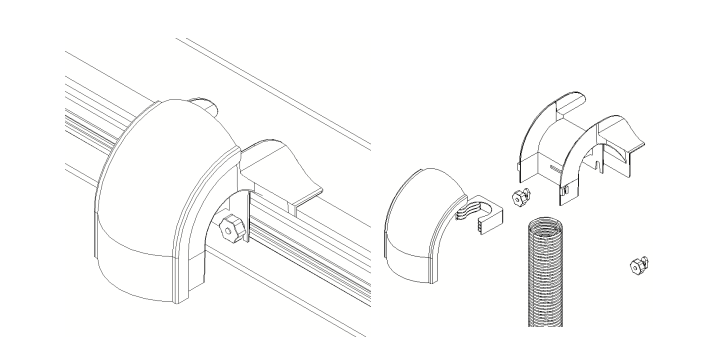

1.Install the movable exit kit on the side of the wiring trough and tighten it with T-shaped screws and knob nuts.

2.The movable exit kit has a reserved interface for installing a corrugated hose, which can be connected to the hose to protect the optical fiber; the corrugated hose is an open tube, and optical fibers can be added to the hose at any time.
