How to connect wire mesh cable tray

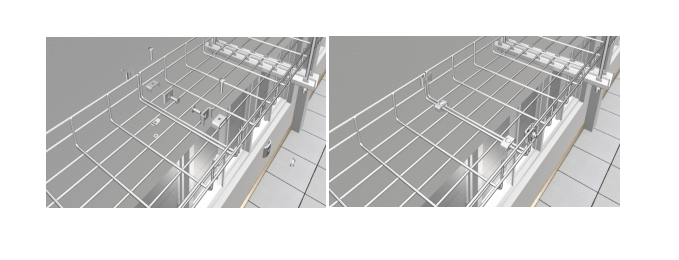

1.COUPLER KIT

The coupler kit is very versatile and can be used in many places. It is also a common one used in docking installation. It is mainly used for the docking installation of cable tray with a width of less than 300. First fix it between two steel wires with a spacing of 25 on both sides of the cable tray, and then fix it at the bottom of the cable tray. The number of fixes is flexible and can be adjusted according to the width.

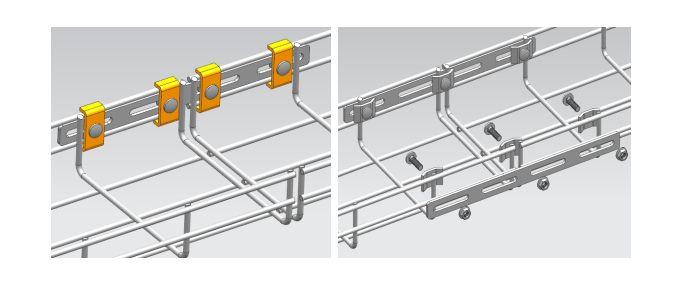

2.STRENGTHENING BAR KIT

The two grids are fastened together with coupler and carriage bolts between the two steel wires with a spacing of 25 on both sides of the cable tray. If the width is large, it can be fixed with a snap sleeve at the bottom.

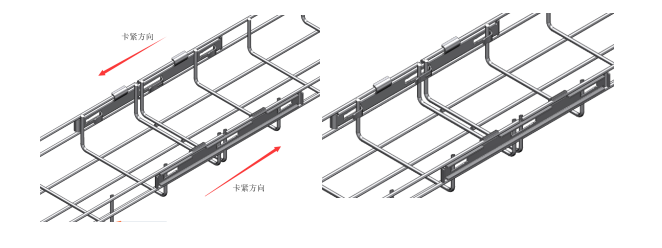

3.FAST LOCKING CONNECTOR

Use fast locking connector for docking to achieve a truly quick connection that requires no tools and saves time and effort (replacing strengthening bar kit); the clamping direction is the same as the hook direction, and the fast locking connector on both sides of the grid snap during installation The tightening direction is exactly the opposite, and then use a tool to bend the hook and tighten the hooked wire.
