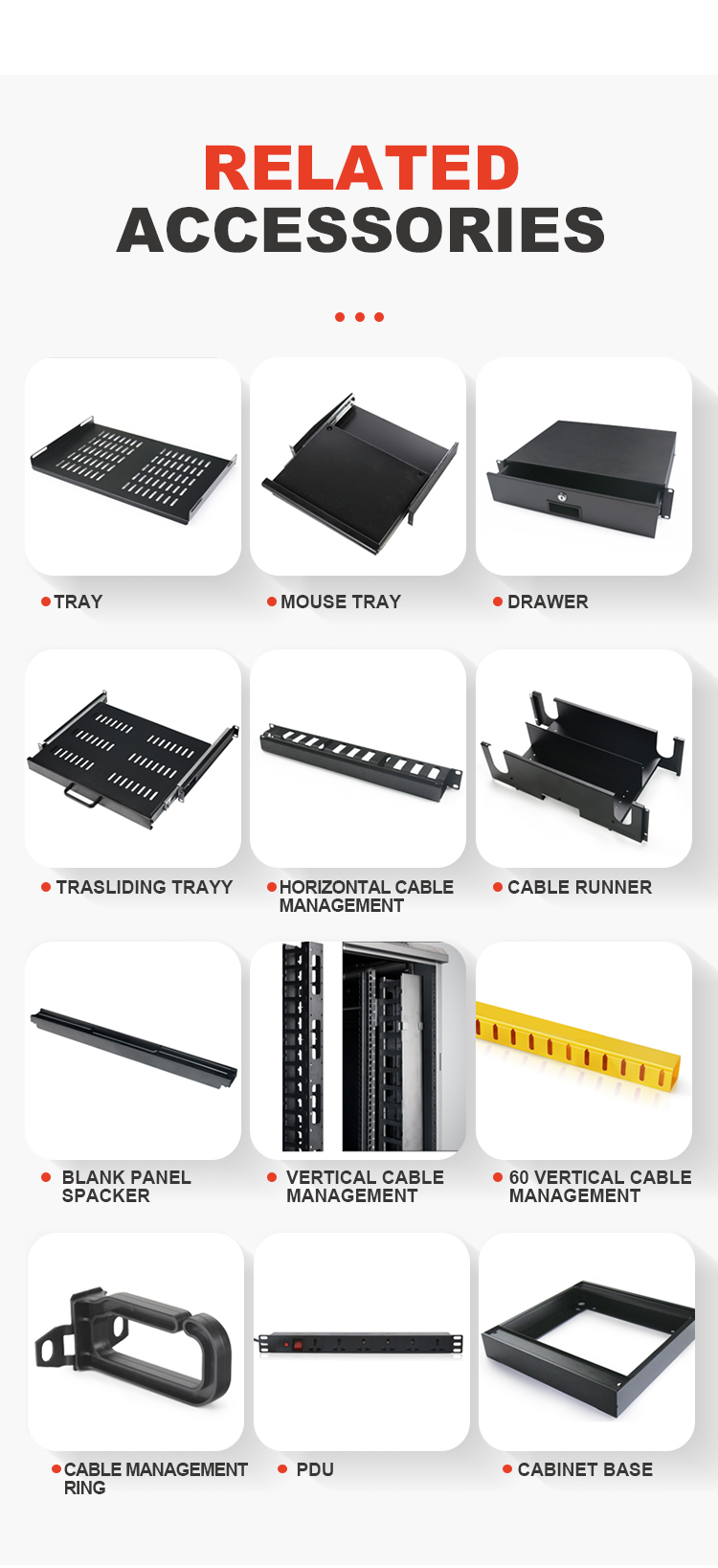

General accessories for server cabinets

Fixed shelf: used to install various equipment, with various sizes and wide uses, including 19" standard pallet, non-standard fixed pallet, etc. The depth of the conventionally configured fixed shelf is 300mm, 500mm, 600mm, 650mm, 750mm and other specifications. The fixed shelf  loading capacity is not less than 80KG.

Sliding shelf: used to install keyboards and various other equipment, which can be easily pulled out and pushed back; the 19" standard sliding shelf is suitable for any 19" standard cabinet. The depth of the conventional sliding shelf is 350mm, 550mm and other specifications. The loading capacity of the sliding shelf is not less than 50KG.

PDU: suitable for 10A national standard power plug, can be directly installed on the cabinet installation volume. Specifications: 6 sockets. Parameters: ~220V, 10Amp.

Cable manager: 19" standard cable manager. It can be installed in the cabinet and installed on the vertical beam of the cabinet.

Cable management ring: The internal cable management device is installed on the vertical beam of the cabinet. It is very convenient to install and disassemble. The number and position can be adjusted arbitrarily.

L rail: The L rail can be used with the cabinet and is used to install 19" standard equipment in the cabinet. It is mainly used to install rack servers.

Blank panel: The blank panel is used to cover the free space in the 19" standard cabinet. It has various specifications such as 1U, 2U... etc. The conventional blind plate is 1U and 2U.

Keyboard drawer: used to install standard computer keyboard, suitable for 19" size computer keyboard. The keyboard drawer must be used with the sliding tray.

Fan unit: Installed on the top of the cabinet, it is used to exhaust air inside the cabinet, effectively reducing the temperature inside the cabinet and allowing the equipment to operate better.
