How to realize the intelligent management function of cabinets

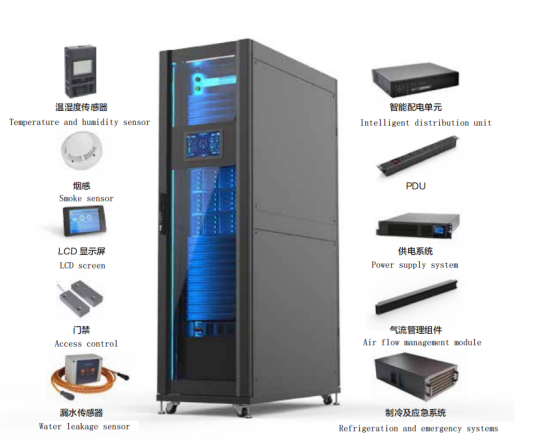

For situations where data center computer rooms have high requirements for the operating environment and safety of cabinets, cabinets with intelligent systems are needed to meet the relevant requirements. The main intelligence is reflected in the diversification of monitoring functions:

(1) Temperature and humidity monitoring function

The intelligent cabinet system is equipped with a temperature and humidity detection device, which can intelligently monitor the temperature and humidity of the internal environment of the regulated power supply system, and display the monitored temperature and humidity values ​​on the monitoring touch screen in real time.

(2) Smoke detection function

By installing smoke detectors inside the smart cabinet system, the fire status of the smart cabinet system is detected. When an abnormality occurs inside the smart cabinet system, the relevant alarm status can be displayed on the display interface.

(3) Intelligent cooling function

Users can set a set of temperature ranges for the regulated power supply system based on the temperature environment required when the equipment in the cabinet is running. When the temperature in the regulated power supply system exceeds this range, the cooling unit will automatically start working.

(4) System status detection function

The smart cabinet system itself has LED indicators to display its working status and data information collection alarms, and can be displayed intuitively on the LCD touch screen. The interface is beautiful, generous and clear.

(5) Smart device access function

The smart cabinet system has access to smart devices, including smart power meters or UPS uninterruptible power supplies, and reads corresponding data parameters through the RS485/RS232 communication interface and Modbus communication protocol, and displays them on the screen in real time.

(6) Relay dynamic output function

When the linkage of the pre-designed system logic is received by the smart cabinet system, a normally open/normally closed message will be sent to the DO channel of the hardware interface to drive the equipment connected to it, such as audible and visual alarms, fans, etc. and other equipment.
