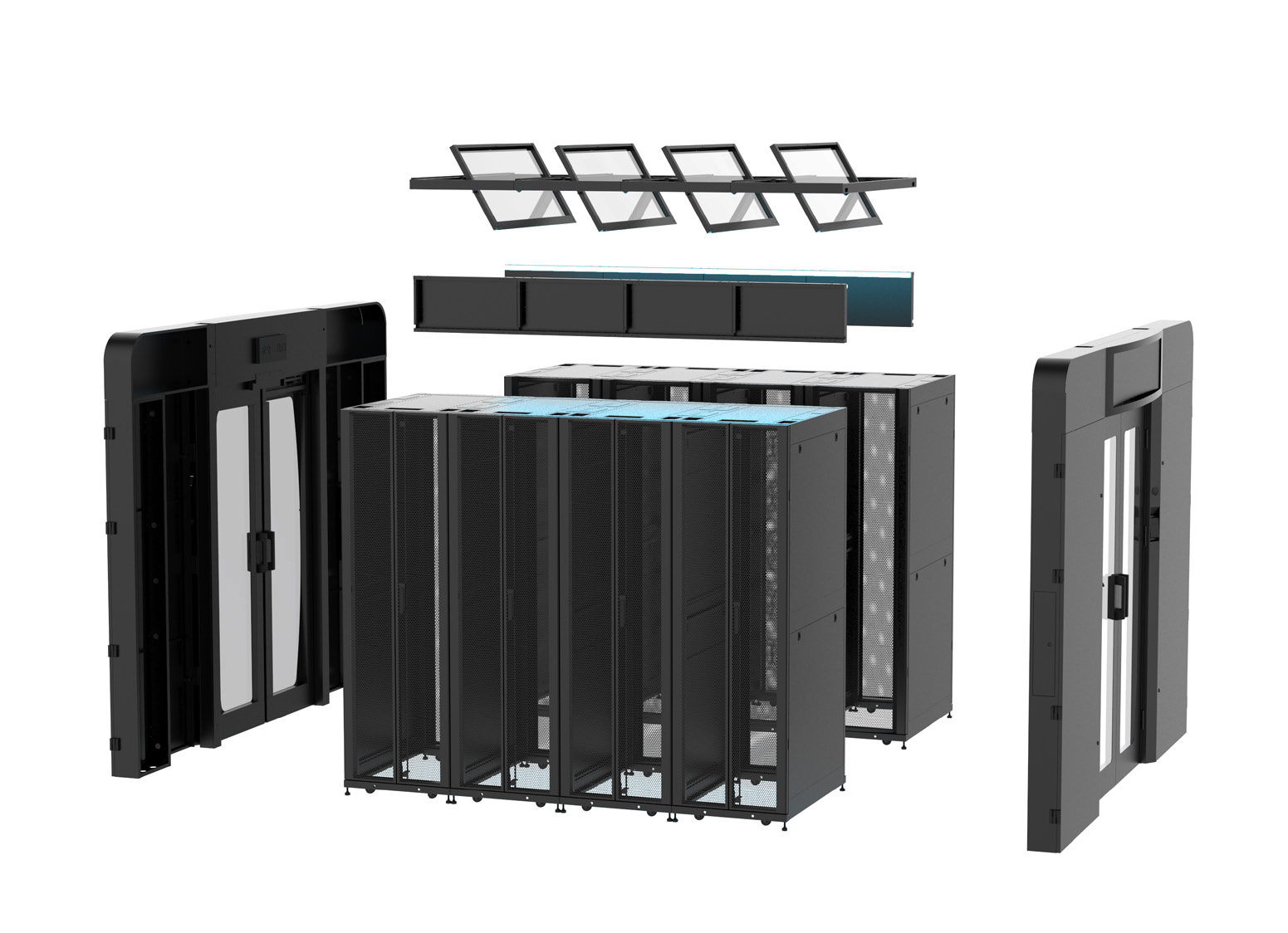

Cold Aisle containment appearance and structure

1.The upper top cover of the cold aisle adopts a flat-top structure. The design is 350mm higher than the top of the cabinet. The total width of the top cover is 1305mm. The modular grid standard design is highly interchangeable and easy to install.

2.After the movable skylight is opened, the clear height of the cooling passage is greater than 2 meters or more, which does not affect daily maintenance work.

3.The cold aisle has a unit modular design. Each unit can be installed independently and connected to adjacent units. It has strong interchangeability and can be assembled flexibly. The frame is connected horizontally to the horizontal bracket of the cabinet. In addition to reinforcing the channel itself, it also has the function of convenient expansion.

4.A pair of sliding doors are installed between the head and end of the row, which have good sealing effect and effectively prevent the flow of hot air from entering the equipment. The preset port of the cold aisle is linked with the overall fire protection of the computer room, and can automatically open the movable skylight according to the fire signal (switch signal) and meet the fire protection needs in the channel.

5.All unit components of the cold aisle are made of materials with unique good wear resistance, corrosion resistance, fine processing, integral stamping molding, and high-reliability contact. The unit opening life test should be no less than 5,000 times, safe and durable, without loosening, and ensuring air flow. Output tightness.
